Vibrating Feeder

Model:

ZG200

Capacity:

20~2000t/h

Frequency:

1500rpm

Power:

2*0.75kw

Double Amplitude:

2~8mm

Vibrating Force:

5~150kn

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Working Principle and Application

Parameters

Product Details

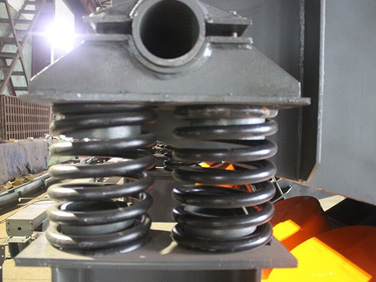

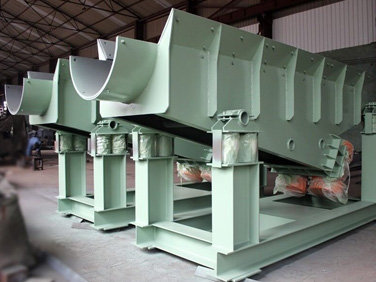

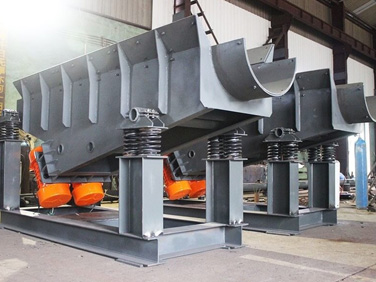

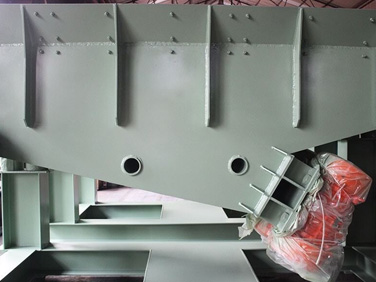

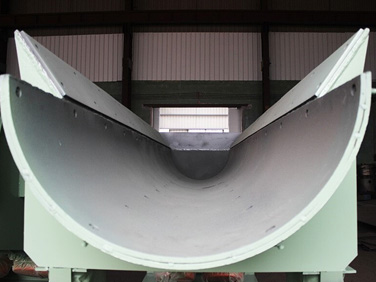

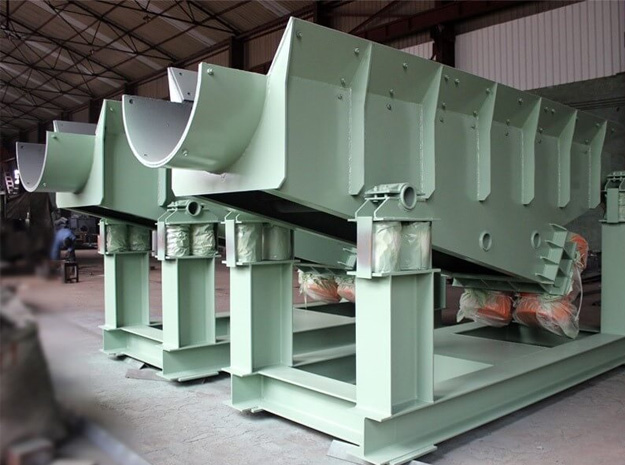

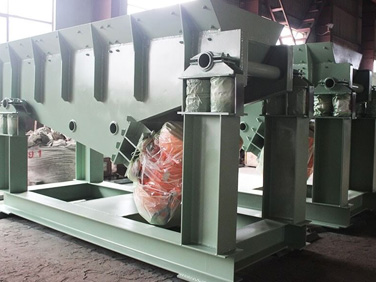

Vibrating Feeder is a kind of linear direction feeding equipment, It consists of feed spout, vibration body, vibrating motor, damping device. It can feed material for belt conveyor, vibrating conveyor, bucket elevator, vibrating screen, crusher etc.

Characteristics

Smooth operation, large feeding capacity with high efficiency

Low energy consumption,stable vibration,long service life

Characterized by even feeding, excellent continuity and adjustable vibrating force

Eccentric block as the main source of vibration

Easy maintenance and the enclosed type can prevent dust pollution

Simple structure

Working Principle and Application

The feed process of the vibrating feeder is achieved by the feed spout do line reciprocating vibration periodically which is forced by the special vibrating motor. When the vertical component of the feed spout vibrates, the accelerated speed is bigger than the gravitational acceleration, the material will be upthrow and jumping forward along a parabolic path. Due to the continuous exciting of the vibrating motor, the feed spout will vibrate continuously and the material in the feed spout will jumping forward continuously, so that the purpose of feeding material is achieved.
Vibrating Feeder is widely used in pharmaceutical, automotive, electronic, food processing, packaging, glass, steel, construction, recycling, plastic industry etc.

♦Selection Conditions

Material to be processed: _____
Bulk Density: _____t/m3
Material size:____mm
Handling capacity: _____ t/h
Hanging type or seated type:_____
Working power supply: _____V ______HZ

Parameters

Model	Feeding Size (mm)	Processing Capacity (t/h)	Model of Vibrating Motor	Power (kW)	RPM (r/min)	Double Amplitude (mm)	Vibrating Force (N)
ZG-25	60	25	YZO-2.5-4	0.25x2	1500	2-3	5000
ZG-30	60	30	YZO-2.5-4	0.25x2	1500	2-3	5000
ZG-60	90	60	YZO-5-4	0.4x2	1500	2-4	10000
ZG-80	160	80	YZO-5-4	0.4x2	1500	2-4	10000
ZG-100	210	100	YZO-8-4	0.75x2	1500	2-5	16000
ZG-200	270	200	YZO-8-4	0.75x2	1500	2-5	16000
ZG-300	300	300	YZO-17-4	0.75x2	1500	2-5	34000
ZG-400	300	400	YZO-17-4	0.75x2	1500	3-5	34000
ZG-500	300	500	YZO-17-4	0.75x2	1500	3-5	34000
ZG-750	400	750	YZO-30-6	2.5x2	1000	4-6	60000
ZG-1200	400	1200	YZO-30-6	2.5x2	1000	4-6	60000
ZG-1800	420	1800	YZO-75-6	5.5x2	1000	5-8	150000
ZG-2000	420	2000	YZO-75-6	5.5x2	1000	5-8	150000
