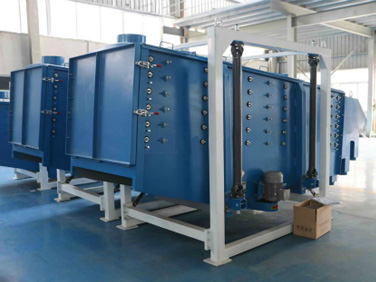

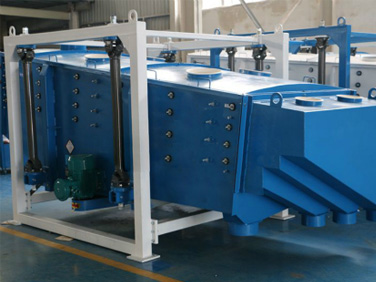

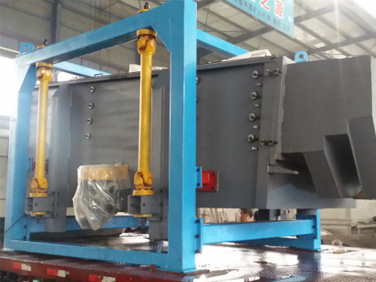

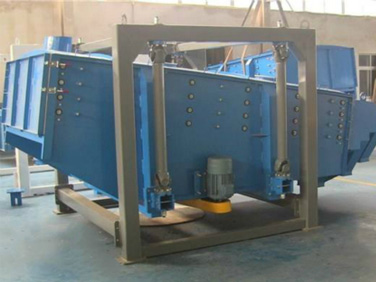

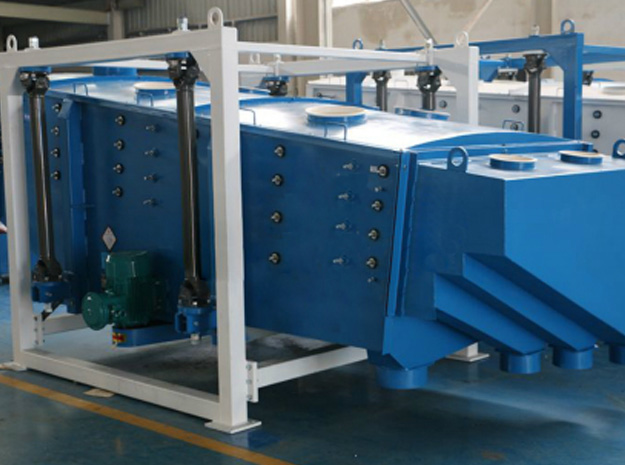

Square Tumbler Vibrating Screen

Model:

FYBS1536

Effective Screening Area:

5.4 m2

Power:

5.5 kW

Slope Angle:

5-8 degree

Layer number:

1-5

Screening Speed:

180-260 r/min

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Principle

Application

Parameters

Product Details

Tumbler vibrating screen, also known as reciprocating vibrating screen, is currently the most effective simulation of the principle of manual screening movement. Tumbler screen machine is high-performance fine screening equipment that achieves high-precision materials and large processing requirements. Its screening accuracy and efficiency meets all fine and ultra-fine powder and particulate materials, and durability is widely recognized by the industry.

Characteristics

Large effective screening area and high screening efficiency

The material moves on the screen for a long time to ensure the screening accuracy and increase the capacity

Adopt high-efficiency cleaning screen device to prevent clogging of screen holes

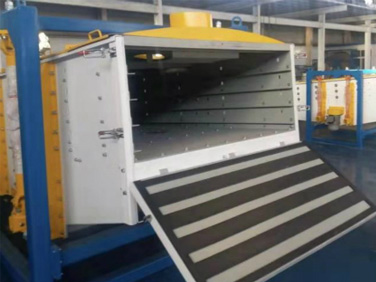

With a unique structural design, it supports easy replacement of screens and reduces maintenance

Airtight dust removal, safe operation and low noise

Principle

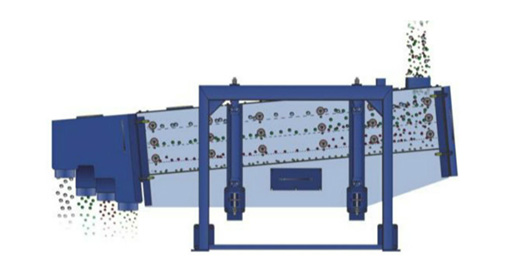

The vibration force of swing vibration tumbler screen generated by the drive device is an inertial force that changes in a certain pattern. The screening motion is a reciprocating inertial force generated by the rotation of the eccentric wheel driven by the motor around a fixed axis. The screen surface is generally horizontal or slightly inclined. After the sieve machine is started, the screen body reciprocates back and forth under the action of inertial force, so that the materials on the screen surface follow the screen box and performs a rotary motion on the plane to complete the screening work, the basic rotary motion is very similar to manual screening.

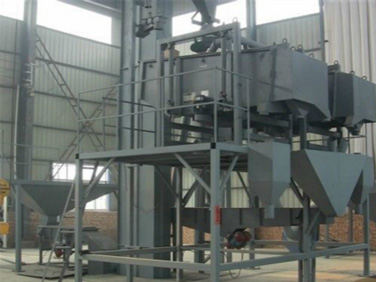

Application

Used in chemical industry, food, sugar, salt, ceramics, feed, chemical fertilizer, medicine, sand, activated carbon, limestone, petroleum coke, plastic, PVC powder, building materials, grain and other industries.

Parameters

Model	Effective Screening Area (m2)	Power (kW)	Slope Angle (°)	Layer No.	Screening Speed (r/min)	Vibration Amplitude (mm)
FYBS1030	3	3	5-8	1-5	180-260	25-60
FYBS1036	3.6	3
FYBS1230	3.6	4
FYBS1236	4.32	4
FYBS1530	4.5	5.5
FYBS1536	5.4	5.5
FYBS1830	5.4	7.5
FYBS1836	6.48	7.5
FYBS2030	6	7.5
FYBS2036	7.2	7.5

Note: All the parameters are for reference only, we can design and manufacture as per your requirements.
