UHMW-PE Roller

Model:

Φ76/89/108/133/159

Tube diameter:

76/89/108/133/159mm

Tube material/Thickness:

Ultra High Molecular Polyethylene/10~15mm

Shaft Material/Diameter:

Bright-draw steel axle/20/25/30/35/40mm

Bearing Brand:

SKF/FAG/LYC/HRB

Matched bandwidth:

500/650/800/1000/1200/1400mm

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Application

Parameters

Product Details

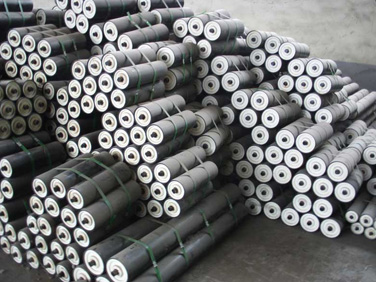

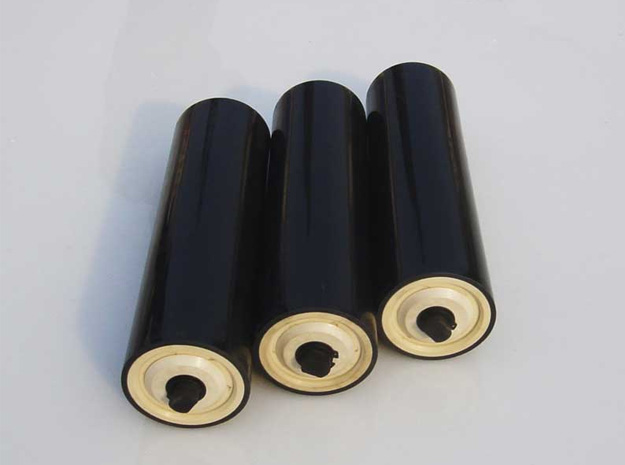

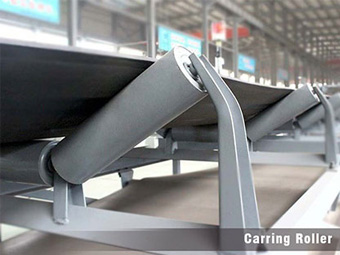

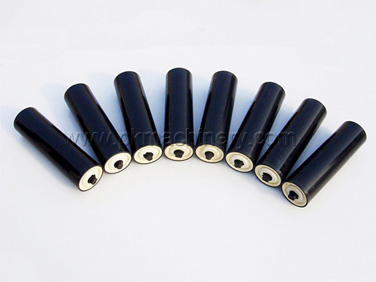

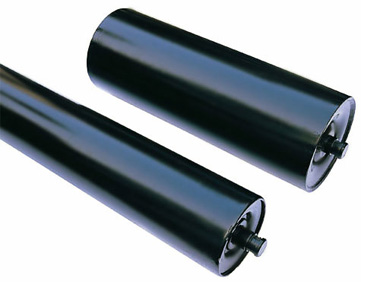

Ultra high molecular polyethylene roller (UHMW-PE Roller) is an advanced product which is to substitute stainless roller, which has some disadvantages such as heavy, easy to be eroded, easy to stick with transporting material, high static electricity and others. it includes ultrahigh molecular polyethylene pipe which is produced by high technology as its body, bearing seat and seal are fully rubber material made by one-time. Then, they are sealed with three layers of water-proof and dust-proof installation via labyrinth and contact method.

Characteristics

Good lubricity and not bonding, so no bonding and piling up material on the surface of the idler. Guarantee the steady operation of the belt conveyor.

Friction coefficient is much lower than steel, reduce the friction between the idler and belt, that reduces the driving force of the belt conveyor.

Long working life, is 3~5 times of the steel.

Because of the good performance of the UHMW-PE, also extending the working life of the belt conveyor.

Light weight which is 1/3~1/2 of the steel weight, conveniently installing and changing, reducing the maintenance and labor intensity and also reducing the 25% electricity.

Effectively reducing the operation noise, UHMW-PE has better shock absorbing performance and damping performance.

Good load bearing performance and anti-corrosive performance, it can be meet the heavy load of the belt conveyor according to adjusting the thickness.

Adapt to large scope of the working temperature. ( can work from -40℃ ~ 80℃).

Application

Ultra High Molecular Roller is the substitution product of stainless roller; it is also equipped in the belt conveyor, which is widely used in coal mines, metallurgy, ports, construction site, power station, and chemical, especially in food and medicine industries.

Comparison test data of gantry service life(UHMW-PE Roller and Metal Roller)

Group No.	Test bearing	Inertial time pre-test	Rotary resistance pre-test	Time to failure	Inertial time after test	Temperature rising in test
First Group	UHMW-PE	536	/	276	107	30
First Group	Metal	142	5.9×10-3	18	Not run	≥60
Second Group	UHMW-PE	556	/	423	39	25
Second Group	Metal	136	4.0×10-2	7	Not run	≥60
Third Group	UHMW-PE	894	6.8×10-3	536	20	≈30
Third Group	Metal	383	1.4×10-2	52	Not run	≥60
Fourth Group	UHMW-PE	821	3.9×10-2	536	29	≈30
Fourth Group	Metal	263	1.8×10-2	121	Not run	≥60

♦Selection Conditions

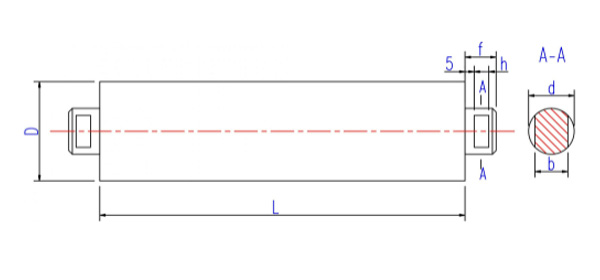

Please refer to the following picture and provide the core parameters : b______mm; d _____mm ;f _____mm; h_____mm; L_____mm
Corresponding layout drawing if you have:_____

Parameters

Diameter	Lenth mm	Pipe Thickness	Shaft Diameter	Bearing Type	Seal Type	Weight(kg)
63.5mm	200	3mm	15mm	6203/4C	Labyrinth Type	1.86
63.5mm	600	3mm	15mm	6203/4C	Labyrinth Type	4.48
76mm	200	3mm	20mm	6204/4C	Labyrinth Type	2.54
	250	3mm	20mm	6204/4C	Labyrinth Type	2.85
	600	3mm	20mm	6204/4C	Labyrinth Type	5.82
	750	3mm	20mm	6204/4C	Labyrinth Type	7.05
89mm	200	3.5mm	20mm	6204/C4	Labyrinth Type	2.8
	250	3.5mm	20mm	6204/C4	Labyrinth Type	2.99
	315	3.5mm	20mm	6204/C4	Labyrinth Type	3.59
	600	3.5mm	20mm	6204/C4	Labyrinth Type	6.49
	750	3.5mm	20mm	6204/C4	Labyrinth Type	7.88
	950	3.5mm	20mm	6204/C4	Labyrinth Type	9.73
108mm	250	3.5mm	25mm	6205/C4	Labyrinth Type	4.3
	315	3.5mm	25mm	6205/C4	Labyrinth Type	5.07
	380	3.5mm	25mm	6205/C4	Labyrinth Type	5.87
	465	3.5mm	25mm	6205/C4	Labyrinth Type	6.89
	530	3.5mm	25mm	6205/C4	Labyrinth Type	7.7
	600	3.5mm	25mm	6205/C4	Labyrinth Type	8.54
	750	3.5mm	25mm	6205/C4	Labyrinth Type	10.37
	950	3.5mm	25mm	6205/C4	Labyrinth Type	12.78
	1150	3.5mm	25mm	6205/C4	Labyrinth Type	15.2
	1400	3.5mm	25mm	6205/C4	Labyrinth Type	18.11
	1600	3.5mm	25mm	6205/C4	Labyrinth Type	20.7
133mm	250	4mm	25mm	6305/C4	Labyrinth Type	4.3
	315	4mm	25mm	6305/C4	Labyrinth Type	7.12
	380	4mm	25mm	6305/C4	Labyrinth Type	8.23
	465	4mm	25mm	6305/C4	Labyrinth Type	9.62
	530	4mm	25mm	6305/C4	Labyrinth Type	10.7
	600	4mm	25mm	6305/C4	Labyrinth Type	11.86
	700	4mm	25mm	6305/C4	Labyrinth Type	13.53
	800	4mm	25mm	6305/C4	Labyrinth Type	15.17
	950	4mm	25mm	6305/C4	Labyrinth Type	17.66
	1150	4mm	25mm	6305/C4	Labyrinth Type	20.98
	1400	4mm	25mm	6305/C4	Labyrinth Type	25
	1600	4mm	25mm	6305/C4	Labyrinth Type	28.48
159mm	315	4.5mm	30mm	6306/C4	Labyrinth Type	9.38
	380	4.5mm	30mm	6306/C4	Labyrinth Type	11.87
	465	4.5mm	30mm	6306/C4	Labyrinth Type	13.8
	530	4.5mm	30mm	6306/C4	Labyrinth Type	15.27
	600	4.5mm	30mm	6306/C4	Labyrinth Type	16.86
	700	4.5mm	30mm	6306/C4	Labyrinth Type	19.13
	800	4.5mm	30mm	6306/C4	Labyrinth Type	21.4
	1150	4.5mm	30mm	6306/C4	Labyrinth Type	29.34
	1400	4.5mm	30mm	6306/C4	Labyrinth Type	35.02
	1600	4.5mm	30mm	6306/C4	Labyrinth Type	39.56
