Conveyor Cover

Model:

YDT5~YDT14

Material:

Colorized Galvanized Steel Plate

Thickness:

0.5/0.6/0.8/1.0mm

Color:

Sea blue/Orange

Type:

Stationary/Open

Matched bandwidth:

500/650/800/1200/1400mm

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Selection Conditions

Parameters

Product Details

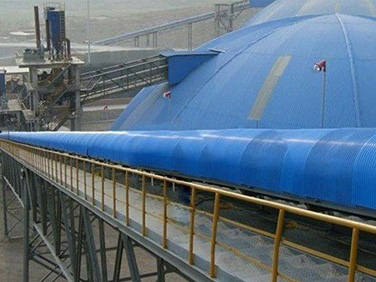

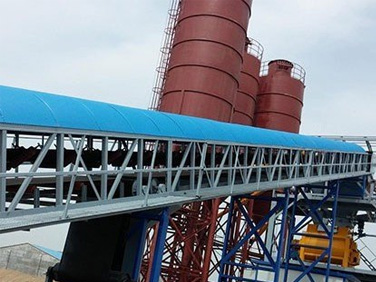

Conveyor cover is used to protect the conveyed materials ,belting, idlers and framework from rain, wind, dust during transportation as well as to avoid the dispersion of powders.It is consist of steel sheet, hook, hinge and rivets etc. In addition , the steel plate can also be manufactured in galvanized steel,aluminum, stainless steel, fiberglass and painted steel.Anti-rain conveyor cover is suitable for belt conveyor with width of 500/650/800/1000/1200/1400/1600/1800/2000mm in power station, cement plant, steel mill, chemical plant, port, dock, mine, coal plant etc.

Characteristics

No installation supports needed to brace covers on conveyor.

Rigid, corrugated covers are infinitely stronger than smooth designs.

Conveyor cover installation is not dependent on the location of idlers.

Overlapped edges double thickness increases conveyor cover strength.

Waves on surface to increase the support force, even can withstand a person.

Conveyor cover protects belt conveyor free from rain, dust, sunshine, wind etc.

Galvanized steel plate or fiberglass construction material can be optional.

Symmetrical design allows easy placement, quick installation and safe access.

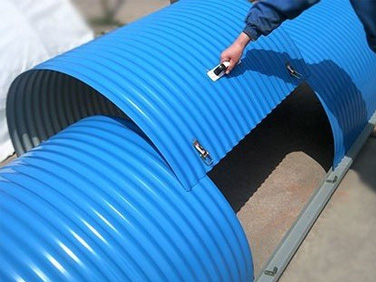

Openable conveyor cover designed with hinges and self-tapping screws.

Full style hinges of the conveyor covers are protected with rust free coating.

Selection Conditions

Thickness:________mm(PS. thickness can be customized or can be standard: 0.5mm,0.6mm and 0.8mm)

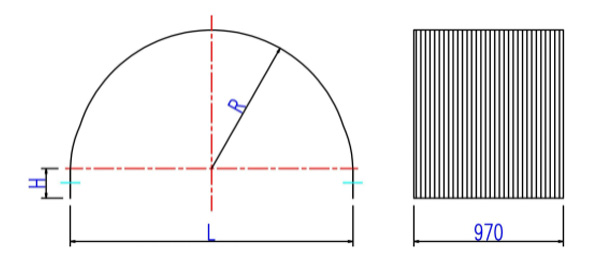

Please refer to the following picture and provide the core parameters : L_______mm; H ________mm; R_______mm
Corresponding layout drawing if you have:_____

Parameters

Model	Belt Width	Thickness	Material	Opening width	Height	Radius
YDT5	500mm	0.5mm	colorized galvanized steel plate	846	573mm	423mm
YDT6	650mm	0.5mm		996	648	498
YDT8	800mm	0.5mm		1196	748	598
YDT10	1000mm	0.6mm		1396	848	698
YDT12	1200mm	0.6mm		1606	953	803
YDT14	1400mm	0.8mm		1856	1078	928
YDT16	1600mm	0.8mm		2056	1173	1028
YDT18	1800mm	1mm		2300	1280	1150
YDT20	2000mm	1mm		2546	1423	1273
Remark: During installation,should install the opeanable conveyor cover on the two fixed type conveyor covers near it,the effective length of each conveyor cover is 900mm.
