U-type Screw Conveyor

Model:

Screw diameter:

200/250/315/400/500/630/800/1000mm

Screw pitch:

160/200/250/315/400/500/560mm

Rotating Speed:

16/20/25/32/40/50/63/71rpm

Capacity:

8~150m³/h

Max.Conveying Distance:

45m

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Selection Conditions

Parameters

Product Details

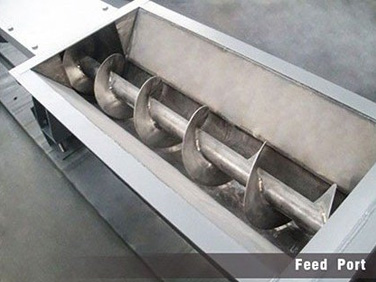

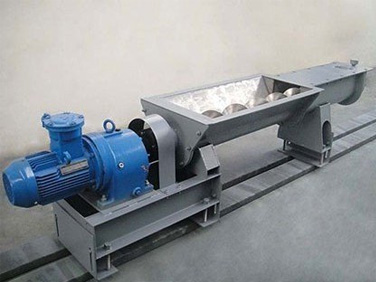

Trough Screw Conveyor is a continuous conveying equipment which used to transport powder, granular and dry bulk materials. It consists of bearing seat, screw blade, screw shaft, hang bearing, conveyor casing and driven device,etc.Single or combination of multiple screw equipment can be used to integrate with each other to meet particular on-site requirements. It has trough type tube with multiple inlets and outlets, which also has inclination angle of maximum 20°. The rotation of the blade initiated by the motor, then material transferred along the spiral to the outlets.

Characteristics

With cover, whole sealing structure, without pollution to the environment.

Conveyor length can be customized according to your need.

Simple structure, use little material to manufacture, save cost for you.

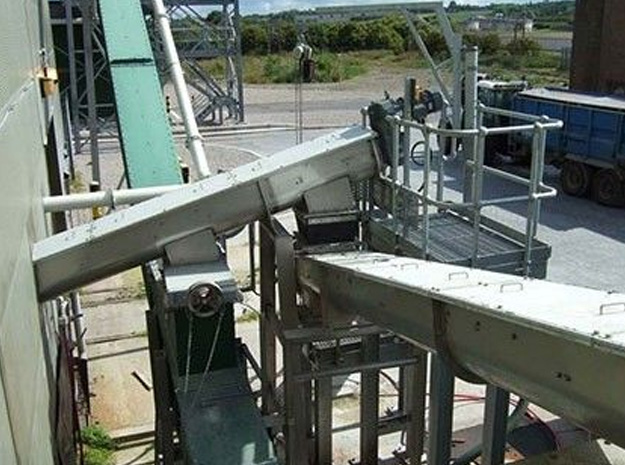

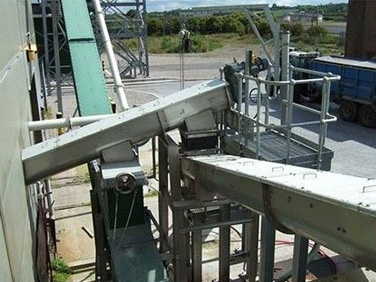

Conveyor angle can be 0-30 degree. Save space on the site.

Screw pitch can be customized according to require of different material.

According to real working conditions, trough screw conveyor machine can be multiple inlets and outlets.

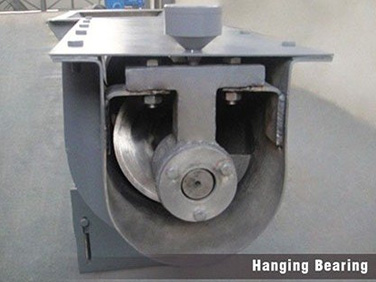

Adopts hanging bearing to connect screw blades which is longer than 3-4m.

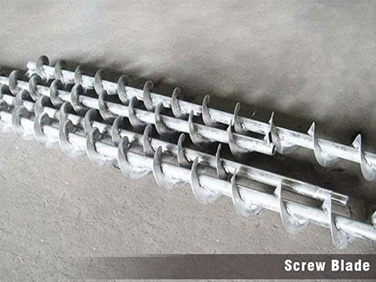

Adopts the method of spot welding to weld spiral blade on the screw shaft.

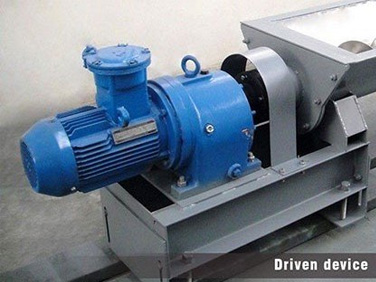

Reducer motor brand can be domestic or imported: Tailong, SEW, Siemens etc.

Easy to disassemble into several sections, save space during transportation.

Selection Conditions

Material to be processed: _____
Bulk Density: _____t/m3
Material size:____mm
Handling capacity :_____t/h
Center distance from inlet to outlet:______m
Installation angle: ________°
Working power supply: _____V ______HZ

Parameters

LS screw conveyor specification & technical parameters
Type		LS160	LS200	LS250	LS315	LS400	LS500	LS630	LS800	LS1000	LS1250
Diameter/mm		160	200	250	315	400	500	630	800	1000	1250
Screw pitch/mm		160	200	250	315	355	400	450	500	560	630
technical parameters	n	112	100	90	80	71	63	50	40	32	25
	Q	8	14	24	34	64	100	145	208	300	388
	n	90	80	71	63	56	50	40	32	25	20
	Q	7	12	20	26	52	80	116	165	230	320
	n	71	63	56	50	45	40	32	25	20	16
	Q	6	10	16	21	41	64	94	130	180	260
	n	50	50	45	40	36	32	25	20	16	13
	Q	4	7	13	16	34	52	80	110	150	200
n---Rotation Speed (r/min), Allowable Deviation < 10% Q---Capacity (m3/h), Filling Factor = 0.33
