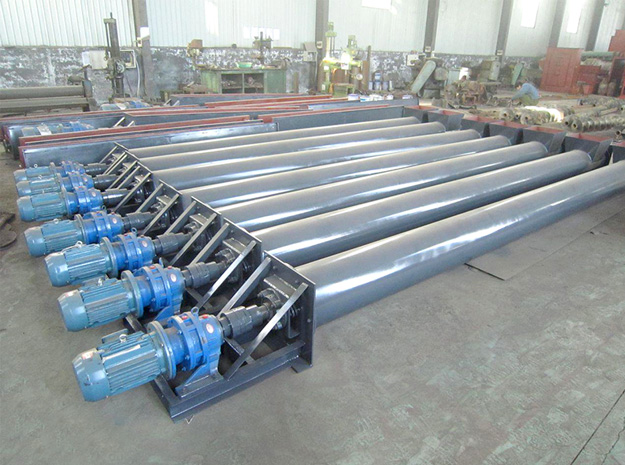

Pipe Screw Conveyor

Pipe Screw Conveyor

Model:
GX
Screw Diameter:
150/200/250/300/400/500/600mm
Screw pitch:
150/200/250/300/400/500mm
Rotating Speed:
20/25/32/40/50/63rpm
Capacity:
14~110 m³/h
Max.Conveying Distance:
55m
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Selection Conditions
Parameters
Product Details
Pipe screw conveyor is a mechanism that uses a rotating helical screw blade coiled around a shaft,it offers a variety of solutions for bulk materials conveying like granular and small bulk materials horizontally or aslope, meanwhile,pipe screw conveyor is very cost-effective and require minimal maintenance to operate. Pipe screw conveyor is widely used for transporting coal,ash,slag,cement,food waste, wood chips, aggregates, cereal grains, animal feed, boiler ash, meat and bone meal, municipal solid waste, and many others.
Characteristics
01
Whole sealing structure, no pollution to the environment,no material leakage.
02
According to working conditions, screw conveyor can be designed to multiple inlets and outlets.
03
Flexible installation type, conveyor angle can be 0-30 degree to meet varies requirement.
04
Hanging bearing is provided to connect screw blades and bear the screw body weights.
05
Adopts the method of spot welding to weld spiral blade on the screw shaft.
06
Construction material with carbon steel, stainless steel and abrasion-resistant alloys are optional.
07
Can be disassemble into several sections, save space during transportation.
08
Reducer motor brand can be domestic or imported: Tailong, SEW, Siemens etc.
Selection Conditions
Material to be processed: _____
Bulk Density: _____t/m3
Material size:____mm
Handling capacity :_____t/h
Center distance from inlet to outlet:______m
Installation angle: ________°
Working power supply: _____V ______HZ
Parameters
GX   Screw Conveyor Technical Performance
Type Length/m Throughput (t/h) Rotating speed/(r/min) Reducer Motor Weight/kg
Type Speed ratio Type  Power/kW
GX200 10 9 60 YZQ250 23.34 Y90S-4 1.1 726
GX200 20 9 60 YZQ250 23.34 Y90L-4 1.5 1258
GX250 10 15.6 60 YZQ250 23.34 Y100L1-4 2.2 960
GX250 20 15.6 60 YZQ250 23.34 Y100L1-4 3 1750
GX300 10 21.2 60 YZQ350 23.34 Y100L2-4 3 1373
GX300 20 21.2 60 YZQ350 23.34 Y112M-4 4 2346
GX400 10 51 60 YZQ400 23.34 Y132S-4 5.5 1911
GX400 20 51 60 YZQ500 23.34 Y160M-4 11 2049
GX500 10 87.5 60 YZQ400 23.34 Y132M 7.5 2381
GX500 20 87.5 60 YZQ650 23.34 Y180M-4 18.5 5389
GX600 10 134.2 45 YZQ750 23.34 Y180L-4 22 3880
GX600 10 134.2 45 YZQ850 23.34 Y250M-4 55 7090
