Grain scraper chain conveyor

Model:

QMS

Trough width:

200/250/320mm

Transport Speed:

0.20/0.25/0.32/0.40/0.50m/s

Capacity:

11.5~165m³/h

Conveying Distance:

4~45m

Chain Structure:

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Selection Conditions

Parameters

Product Details

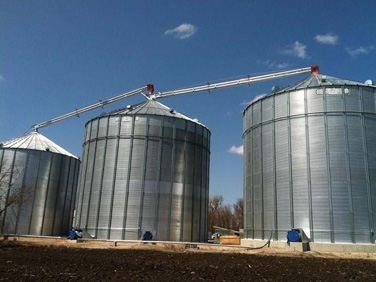

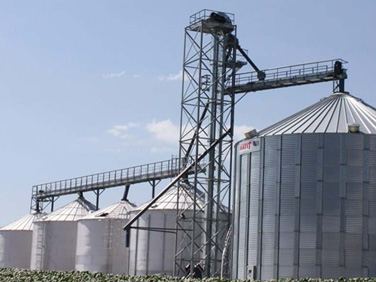

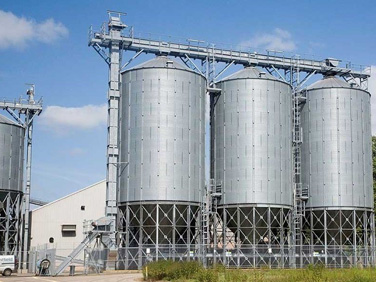

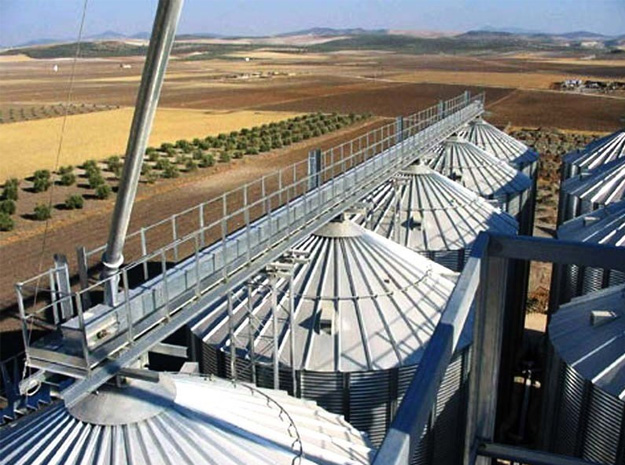

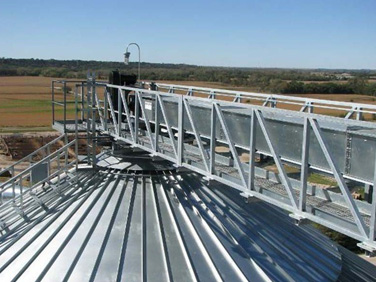

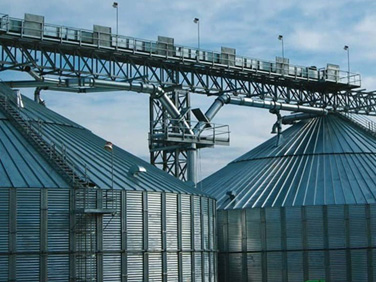

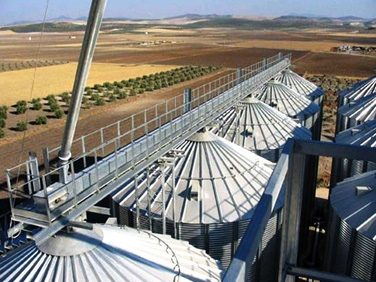

Grain scraper chain conveyor is a light type of buried scraper conveyor which to transport grain into several silos. Compared to the ordinary type, the casing thickness of QMS type is smaller, thus loses the whole weight and saves money. Grain scraper chain conveyor can be widely used to convey grain such as soybean, wheat, rice, flour etc.

Characteristics

Completely enclosed for clean plant operation, environmental friendly.

Large capacities for conveying in a compact space.

Light weight compared with other kind of buried scraper conveyor.

Can reach multipoint charging and discharging.

Variety of side & bottom abrasive resistant steel liners.

Flexible arrangement, singly work or cooperate with other equipment can be achieved.

With screw take-up device, can take-up itself automatically, to avoid chain take off.

Length can be custom-made according to your requirement.

Selection Conditions

Material to be processed: _____
Bulk Density: _____t/m3
Material size:____mm
Handling capacity :_____t/h
Center distance from inlet to outlet:______m
Installation angle: ________°
Working power supply: _____V ______HZ

Parameters

Grain scraper chain conveyor
Model	Effective Working Area	Chain				Capacity (t/h)		Max. Conveying Length (m)
Model	Effective Working Area	Pitch	Chain Type	Scraper Type	Speed (m/s)	ρ=0.5 (t/m3)	ρ=0.75(t/m3)	ρ=0.5(t/m3)	ρ=0.75(t/m3)
QMS20	200 X 200	100	Roller Chain	T	0.2	11.5	17.2	60	40
					0.25	14.4	21.6
					0.32	18.4	27.6
					0.4	23	34.5
					0.5	28.8	43.2
					0.63	34	s
					0.8	43.2	64.8
QMS25	250 X 250	125	Roller Chain	T	0.2	16.9	25.3	60	40
					0.25	21.1	31.6
					0.32	27	40.5
					0.4	33.7	50.6
					0.5	42.1	63.2
					0.63	53.1	79.7
					0.8	67.5	101.3
QMS32	320 X 320	160	Roller Chain	T	0.25	34.5	51.8	60	50
					0.32	44.2	66.3
					0.4	55.3	82.9
					0.5	69.1	103.6
					0.63	87.1	130.6
					0.8	110.5	165.8
