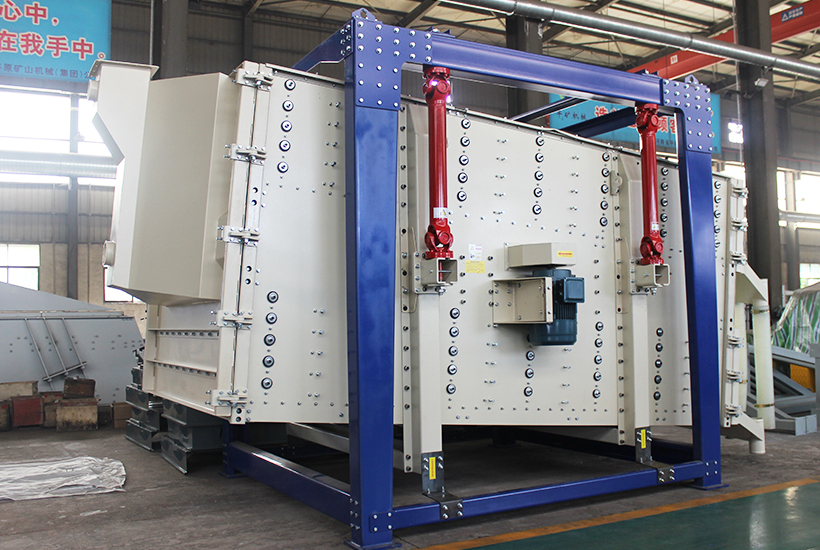

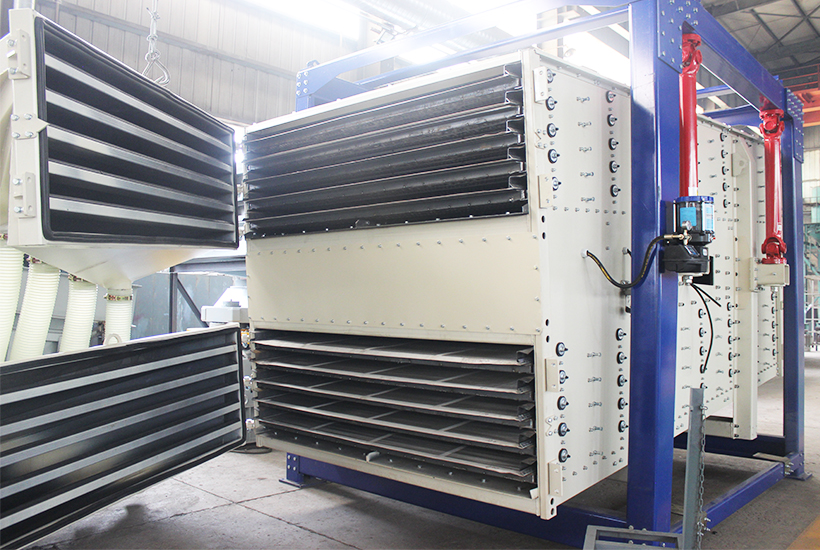

Tumbler screen is suitable for screening granular and powdery materials. Its processing capacity is relatively high, the working mode is close to manual screening, making the principle is easier to understand.
Problem: Swing sieve screen box running track is not normal
Solution:
1.
Square swing sieve universal shaft installation is not balanced, round swing sieve rubber spring fracture.
2. Improper installation of the shaker, resulting in bending of the spindle or bearing damage.
Solution: Check the installation of the above components and make corresponding adjustments.
Problem: the upper and lower material mixing
Solution:
1.Screen mesh damages.
2. Poor sealing of screen body.
3. The screen frame is not pressed tightly.
Solution: Check the screen mesh, screen frame and screen body, replace the corresponding screen mesh; check the sealing rubber.
Problem:
Tumbler sieve utput becomes low, sscreen mesh is easy to block
Solution:
1. Material with high water content, which is easy to agglomerate.
2. Motor power drop or belt slippage.
3. Screen mesh selection does not meet the requirements.
4. Low efficiency of screen cleaning.
5. Low feeding rate.
