Efficient Bucket Elevator

Model:

TDG/THG

Bucket Width:

160/200/250/315/400/500/ 630/800/1000/1250/1600mm

Traction Component:

Conveyor belt/ High strength ring chain

Capacity:

24~1542m³/h

Bucket Running Speed:

0.93/1.20/1.34/1.50/1.68m/s

Max. Lifting height:

80 m

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Selection Conditions

Parameters

Product Details

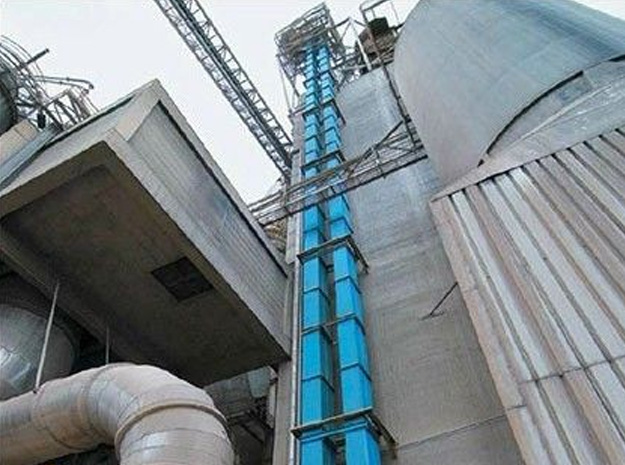

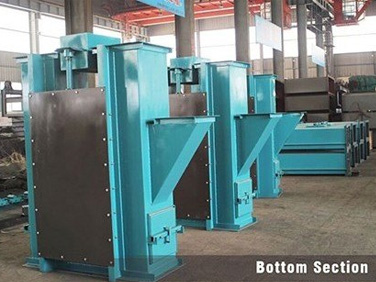

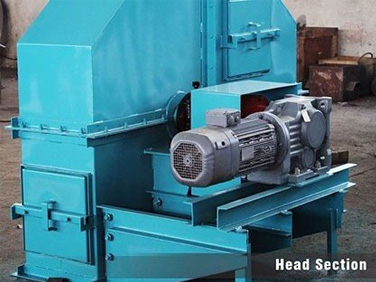

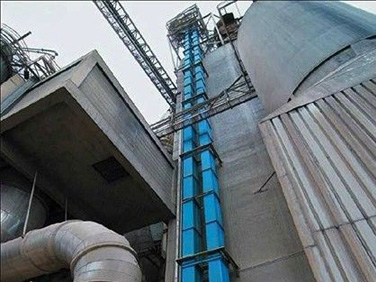

THG/TDG High Efficient Bucket Elevator is the upgraded from TH/TD bucket elevator. Bucket elevator consists of sprocket/drum, chain/belt, driven device, head section, middle casing and tail section etc. High Efficient Bucket Elevator can be widely used in several industries such as mining, mineral, chemical, agriculture, power, food and other industries etc.

Characteristics

Efficient bucket elevator machine with large capacity, high lifting height.

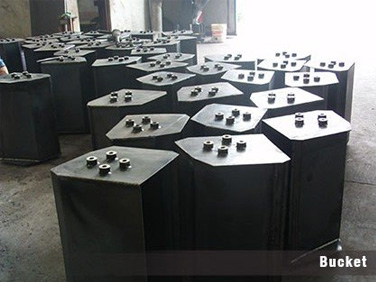

With kinds of buckets, to meet the requirement of different types of material.

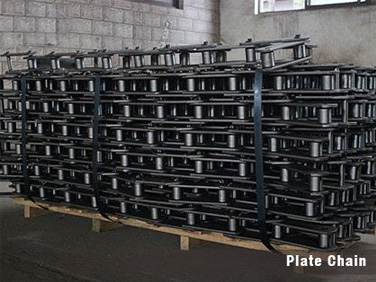

THG bucket elevator adopts alloy steel ring chain, after surface treating and heat treating, moderate hardness, high strength, better abrasive resistance.

TDG bucket elevator adopts steel cord rubber belt, good toughness, high strength.

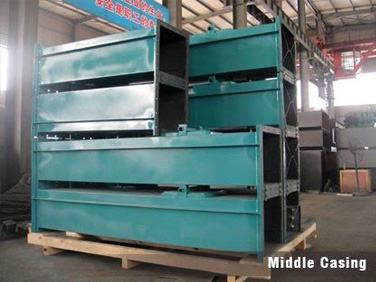

Head, tail parts and middle housing cases with good sealing, no material and dust leaked, with no pollution.

With holdback to prevent material backflow when shut down in an emergency.

Bottom adopts counter weight take-up device, make itself automatic take-up, to avoid belt track slip or chain take off.

Increase speed control sensor and mechanical level detector, it is matched by customized.

Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;

Bearing brand can be domestic or imported: C&U, LYC, HRB , WZS, FAG, NSK, SKF etc.

Selection Conditions

Material to be lifted: _____
Bulk Density: _____t/m3
Feedingcapacity: _____t/h
Elevator Lifting height _______m
Average size of feeding material:____mm
Max. size of feeding material: ____mm
Working power supply: _____V ______HZ

Parameters

TDG Belt Bucket Elevator（with Sh bucket）Technical Parameters Table
Main Technical Parameters	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG
Main Technical Parameters	160	200	250	315	400	500	630	800	1000	1250	1600
Capacity Q（m³/h）	32	45	72	101	158	220	348	492	788	1.22	1541
Bucket Volume /L	2.6	4	7	10	16	25	40	64	102	161	255
Pitch of Buckets /mm	260	300	325	360	420	460	520	580	650	720	820
Weight of traction belt&bucket per meter（kg/m)	22	21.5	33	33.2	42.2	62.3	78.53	106	145	155.5	223
Running Speed v/（m/s)	1.2	1.2	1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Lifting height max/m	80	80	80	80	80	80	80	80	80	80	80
Note:the capacity in the table is calculated according to 75% of the fill factor.

TDG Belt Bucket Elevator（with Zh bucket）Technical Parameters Table
Main Technical Parameters	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG	TDG
Main Technical Parameters	160	200	250	315	400	500	630	800	1000	1250	1600
Capacity Q（m³/h）	24	31	51	74	118	167	253	361	571	816	1112
Bucket Volume /L	1.9	2.9	4.6	7.4	12	19	29	47	74	117	184
Pitch of Buckets /mm	260	300	325	360	420	460	520	580	650	720	820
Weight of traction belt&bucket per meter（kg/m)	22	21.5	33	33.2	42.2	62.3	78.53	106	145	155.5	223
Running Speed v/（m/s)	1.2	1.2	1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Lifting height max/m	80	80	80	80	80	80	80	80	80	80	80
Note:the capacity in the table is calculated according to 75% of the fill factor.

THG Belt Bucket Elevator（with Sh bucket）Technical Parameters Table
Main Technical Parameters	THG	THG	THG	THG	THG	THG	THG	THG	THG	THG	THG
Main Technical Parameters	160	200	250	315	400	500	630	800	1000	1250	1600
Capacity Q（m³/h）	30	50	70	100	160	210	350	475	715	1120	1550
Bucket Volume /L	2.6	4.1	6.5	10	16	25	40	64	102	161	255
Pitch of Buckets /mm	270	270	336	378	420	480	546	630	756	756	882
weight of traction chain & bucket per meter（kg/m)	31	31.85	33.4	43.25	60.9	79.6	88.66	107	150	187.6	233
Running Speed v/（m/s)	0.93	0.93	1.04	1.04	1.17	1.17	1.32	1.31	1.47	1.47	1.47
Lifting height max/m	60	60	60	60	60	60	60	55	55	40	40
1. Filling factor ψ=1; 2. Bucket volume=Volume of full water 3. Maximum lifting height = axis distance of bucket elevator

THG Belt Bucket Elevator（with Zh bucket）Technical Parameters Table
Main Technical Parameters	THG	THG	THG	THG	THG	THG	THG	THG	THG	THG	THG
Main Technical Parameters	160	200	250	315	400	500	630	800	1000	1250	1600
Capacity Q（m³/h）	21	33	45	74	120	160	250	345	520	810	1110
Bucket Volume /L	1.9	2.9	4.6	7.4	12	19	29	47	74	117	184
Pitch of Buckets /mm	270	270	336	378	420	480	546	630	756	756	882
weight of traction chain & bucket per meter（kg/m)	31	31.85	33.4	43.25	60.9	79.6	88.66	107	150	187.6	233
Running Speed v/（m/s)	0.93	0.93	1.04	1.04	1.17	1.17	1.32	1.31	1.47	1.47	1.47
Lifting height max/m	75	75	75	75	75	75	75	70	70	55	55
1. Filling factor ψ=1; 2. Bucket volume=Volume of full water 3. Maximum lifting height = axis distance of bucket elevator
