Portable Belt Conveyor

Model:

Belt Width:

500/650/800/1000mm

Conveying Distance:

3-30m

Belt Speed:

0.80/1.00/1.25/1.60/2.00/2.50m/s

Lifting Height:

0.8~12.5m

Capacity:

25~550m³

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Selection Conditions

Parameters

Product Details

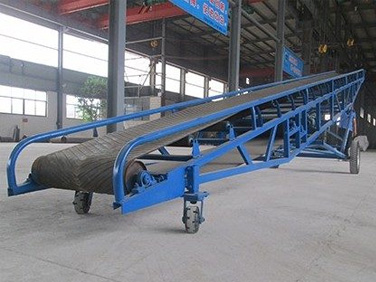

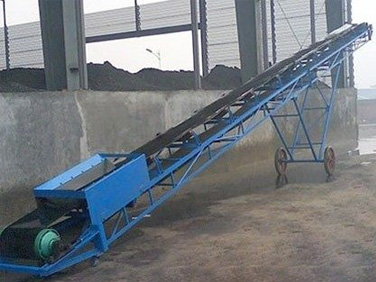

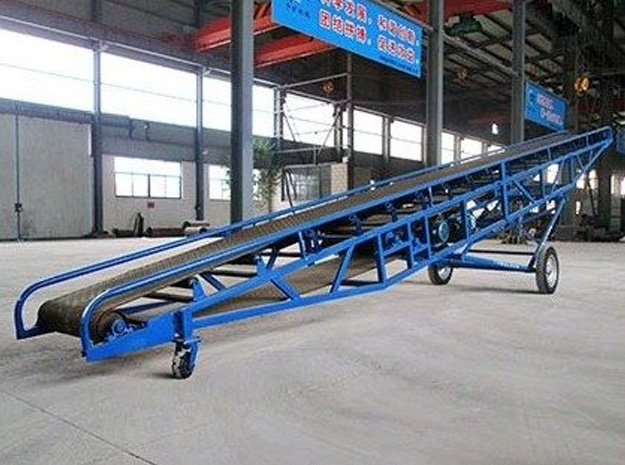

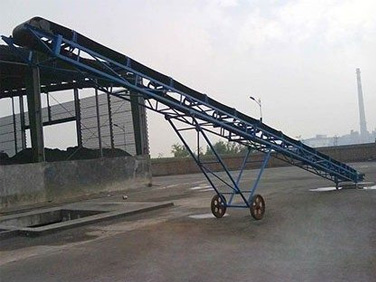

Portable belt conveyors were built to withstand the rugged conditions of any job site. It can be used for transport bulk material or bags. It can be divided into rise-and-fall and non rise-and-fall type, according to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipment, in addition, it can be installed horizontally or aslant to meet the needs of different production lines.

Characteristics

Light weight, one operator can move it easily.

Lifting height can be adjust according to your need.

Belt conveyor system provides gentle handling and higher capacity than the same size screw conveyor.

With wheels and can be moved to anywhere to save equipment number.

Easier for bags or bulk material stacking in warehouse to save your labor cost.

Adopt chevron pattern conveyor belt to increase the maximum conveyor angle.

The conveyor length can be customized according to your requirement.

Selection Conditions

For bulk material:
Material to be processed: _____
Bulk Density: _____t/m3
Handling capacity :_____t/h
Average size of feeding material:____mm
Max. size of feeding material: _____mm
Conveyor length:____m
Max. Lifting height: ______m
Conveying angle is adjustable or not:____
Working power supply: _____V ______HZ

　   　
For bagged material:
Weight of full-load bag:______kg
Number of conveyed bags per hour:______

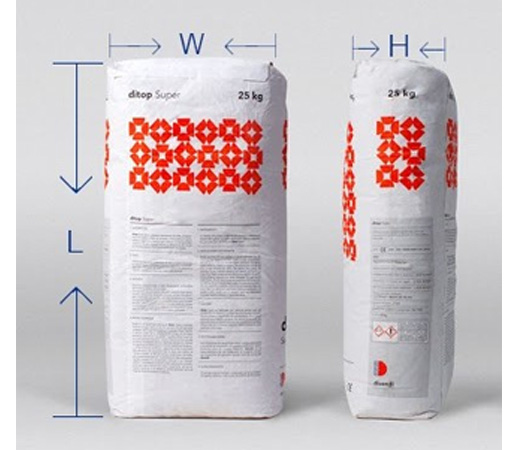

Please refer to the following picture and provide:
L:____mm, W:______mm H:_____mm
Conveyor length
Max. Lifting height: ______m
Conveyor angle is adjustable or not:_____
Working power supply: _____V_____HZ

Parameters

Model	Belt Width (mm)	Conveying Distance（m）	Belt Speed（m/s）	Lifting Height (m)	Slope Angle （º）	Capacity (m3/h)
DY50	500	5-20	0.8-1.6	Adjustable	10-26	50-140
DY65	650	5-20				100-250
DY80	800	5-20				170-350
DY100	1000	5-20				270-550
