Belt Conveyor

Belt Conveyor

Model:
DTII(A)
Belt Width:
500/650/800/1000/1200/1400mm
Belt speed:
0.8/1.0/1.25/1.6/2.0/2.5/3.15m/s
Belt type:
Nylon/Polyester/Steel cable/Cotton canvas

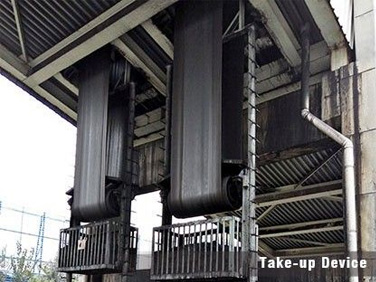

Tensioning mode:
Spiral taut/Heavy hammer taut/Car type taut
Capacity:
65~3950m³/h
Aimed at a prosperous growth in this domain, we are instrumental in
Product Details
Characteristics
Selection Conditions
Parameters
Product Details

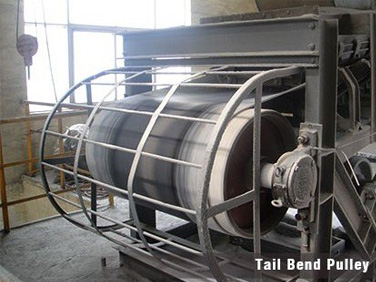

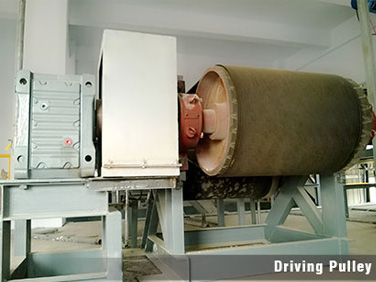

Belt Conveyor is a kind of conveying machine which transport materials from one place to another place continuously. Belt conveyor machine consist of conveyor frame, conveyor belt, conveyor pulley, conveyor rollers, tension devices, driving unit and other components etc. Belt conveyor system can transport materials in bulk and bagged, such as stone, sand, coal, concrete, cement, gravel, fertilizer, mineral ore, limestone, coke, sawdust, wood chip, bulk material, grain, corn flakes, carbon black, etc.
Characteristics
01
Conveyor length can be customized according to your need.
02
0° – 30° inclination to suit the on-site conditions.
03
Belt width can be 500-2400mm as your require.
04
Low horsepower compared with other types of conveyor.
05
Belt conveyor cleaner is installed to clean the conveyor belt.
06

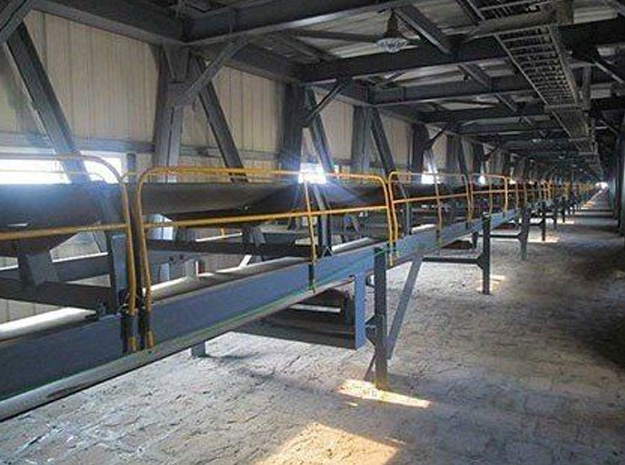

Corridors are built along the belt conveyor for inspection and maintenance.
07
Conveyor rollers are manufactured by our special roller production line, available of types of roller to ensure smooth conveyor system.
08
Conveyor belt brand is YOKOHAMA, high quality and reliable.
09
Motor brand can be domestic or imported: Yutong, Shuangyu, ABB, Siemens, WEG etc;
10
Bearing brand can be domestic or imported: C&U, LYC, HRB , WZS, FAG, NSK, SKF etc.
Selection Conditions
Material to be processed: _____
Bulk Density: _____t/m3
Average size of feeding material: ____mm
Max. size of feeding material: _____mm
Handling capacity :_____t/h
Center distance between the head and tail pulley:____m
Conveyor inclined angle: _____°
Working power supply: _____V ______HZ
Parameters

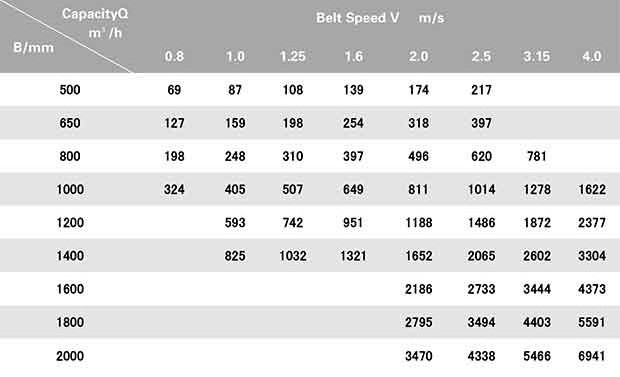

Relationship between belt speed V,Belt width B and capacity Q


Remark:The capacity Q is calculated according to horizontal transport,running stacking angle isθ20°,roller trough isλ35°.
