Position: Home > Products > Spare Parts
Conveyor roller

Conveyor roller

Model:
Φ76/89/108/133/159
Tube diameter:
76/89/108/133/159mm
Tube material/thickness:
Special pipe for seamless rollers/5mm
Shaft Material/ Diameter:
Bright-draw steel axle/20/25/30/35/40mm
Roller Types:

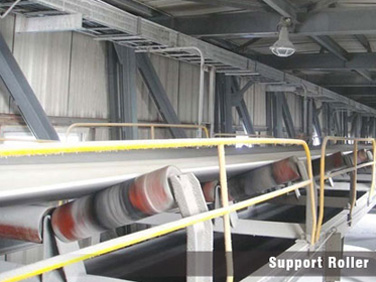

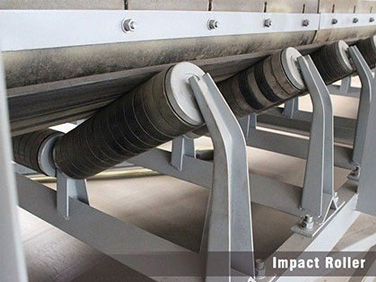

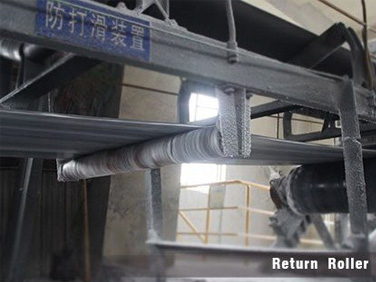

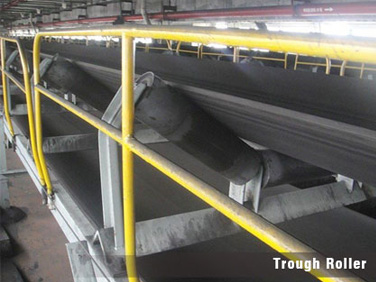

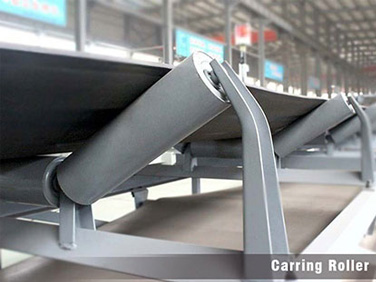

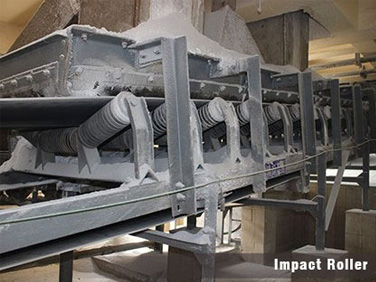

Return roller,impact roller,carrying roller
Matched bandwidth:
500/650/800/1000/1200/1400mm
Aimed at a prosperous growth in this domain, we are instrumental in
Get Latest Price
Product Details
Characteristics
Parameters
Product Details
Conveyor roller, important component of belt conveyor, is used to effectively support belt and bulk material of conveyor. Conveyor roller consists of shell, shaft, bearing, housing, seals and snapring. According to China national standards, diameter are Ф76,Ф89,Ф108,Ф133,Ф159 etc. PK Machinery conveyor roller is of unique structure, reasonable fitting and accurate assembly, resulting in high capacity and long service life.
Characteristics
01
Adopt cold-drawn round steel with higher surface precision as the shaft material.
02
Good coaxiality and cylindricity.
03
Adopt special technology, can reduce the innerstress and welding heat deformation produced during assembling substantially.
04
Rotate resistance is small, weight is stable, service life can be more than 50000 hours.
05
Non-contact type labyrinth seals, higher dust-proof and water-proof properties.
06
Roller with good dynamic and static balance performance.
07
Easy to maintain and replace.
08
Smooth surface, prevent damaging of conveyor belt.
Parameters
Diameter  Lenth         mm Pipe Thickness Shaft Diameter Bearing Type Seal Type Weight(kg)
63.5mm 200 3mm 15mm 6203/4C Labyrinth Type 1.86
600 3mm 15mm 6203/4C Labyrinth Type 4.48
76mm 200 3mm 20mm 6204/4C Labyrinth Type 2.54
250 3mm 20mm 6204/4C Labyrinth Type 2.85
600 3mm 20mm 6204/4C Labyrinth Type 5.82
750 3mm 20mm 6204/4C Labyrinth Type 7.05
89mm 200 3.5mm 20mm 6204/C4 Labyrinth Type 2.8
250 3.5mm 20mm 6204/C4 Labyrinth Type 2.99
315 3.5mm 20mm 6204/C4 Labyrinth Type 3.59
600 3.5mm 20mm 6204/C4 Labyrinth Type 6.49
750 3.5mm 20mm 6204/C4 Labyrinth Type 7.88
950 3.5mm 20mm 6204/C4 Labyrinth Type 9.73
108mm 250 3.5mm 25mm 6205/C4 Labyrinth Type 4.3
315 3.5mm 25mm 6205/C4 Labyrinth Type 5.07
380 3.5mm 25mm 6205/C4 Labyrinth Type 5.87
465 3.5mm 25mm 6205/C4 Labyrinth Type 6.89
530 3.5mm 25mm 6205/C4 Labyrinth Type 7.7
600 3.5mm 25mm 6205/C4 Labyrinth Type 8.54
750 3.5mm 25mm 6205/C4 Labyrinth Type 10.37
950 3.5mm 25mm 6205/C4 Labyrinth Type 12.78
1150 3.5mm 25mm 6205/C4 Labyrinth Type 15.2
1400 3.5mm 25mm 6205/C4 Labyrinth Type 18.11
1600 3.5mm 25mm 6205/C4 Labyrinth Type 20.7
133mm 250 4mm 25mm 6305/C4 Labyrinth Type 4.3
315 4mm 25mm 6305/C4 Labyrinth Type 7.12
380 4mm 25mm 6305/C4 Labyrinth Type 8.23
465 4mm 25mm 6305/C4 Labyrinth Type 9.62
530 4mm 25mm 6305/C4 Labyrinth Type 10.7
600 4mm 25mm 6305/C4 Labyrinth Type 11.86
700 4mm 25mm 6305/C4 Labyrinth Type 13.53
800 4mm 25mm 6305/C4 Labyrinth Type 15.17
950 4mm 25mm 6305/C4 Labyrinth Type 17.66
1150 4mm 25mm 6305/C4 Labyrinth Type 20.98
1400 4mm 25mm 6305/C4 Labyrinth Type 25
1600 4mm 25mm 6305/C4 Labyrinth Type 28.48
159mm 315 4.5mm 30mm 6306/C4 Labyrinth Type 9.38
380 4.5mm 30mm 6306/C4 Labyrinth Type 11.87
465 4.5mm 30mm 6306/C4 Labyrinth Type 13.8
530 4.5mm 30mm 6306/C4 Labyrinth Type 15.27
600 4.5mm 30mm 6306/C4 Labyrinth Type 16.86
700 4.5mm 30mm 6306/C4 Labyrinth Type 19.13
800 4.5mm 30mm 6306/C4 Labyrinth Type 21.4
1150 4.5mm 30mm 6306/C4 Labyrinth Type 29.34
1400 4.5mm 30mm 6306/C4 Labyrinth Type 35.02
1600 4.5mm 30mm 6306/C4 Labyrinth Type 39.56
