Cement Screw Conveyor

Model:

LSY

Screw Diameter:

160/200/250/300/370mm

Screw pitch:

160/200/250/300mm

Rotating Speed:

160/200/260/300rpm

Capacity:

15~120 m³/h

Max.Conveying Distance:

25m

Aimed at a prosperous growth in this domain, we are instrumental in

Email: info@pkmachinery.com Get Latest Price

Product Details

Characteristics

Selection Conditions

Parameters

Product Details

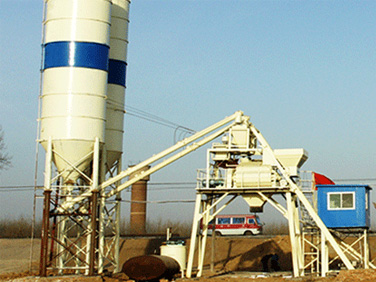

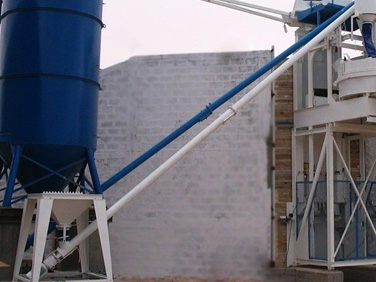

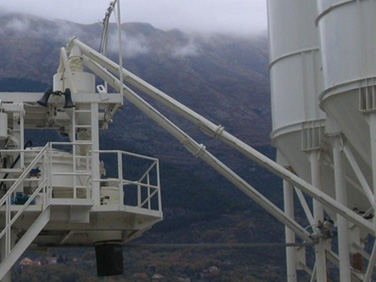

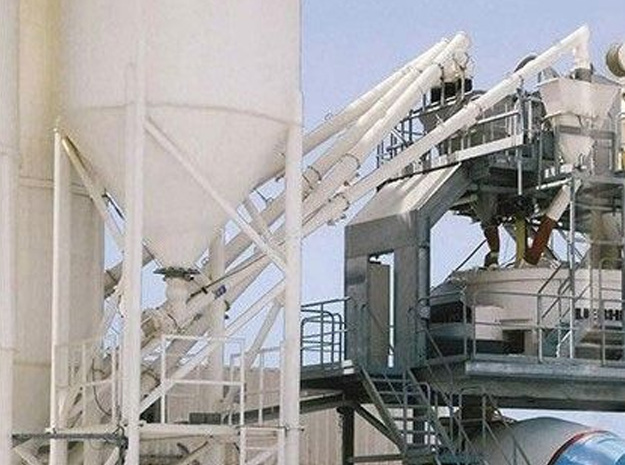

Cement screw conveyor offers highly versatile and numerous solutions for cement feeding and conveying in concrete batching plants, which usually consists of a tube containing rotating helical screw blade coiled around a shaft, driven at one end and held at the other. The main parts also include inlet and outlet chutes and driving device.In addition,cement screw conveyor also widely used for granular and powdery materials at an inclination in many industries, such as concrete mixing station, bulk material transit storage, etc.

Characteristics

Adopts continuous spiral blade made of high strength wear-resistant steel with smooth surface,which ensures the uniformity and stability of conveying material, so as to ensure the repeatability of the material measurement.

The continuous spiral blade is processed with cold rolled surface hardening treatment, hardness and wear resistance are twice higher than ordinary blade, the hardness of outer edge is up to HB240.

Front and rear screw blade adopt sparse and close screw pitch,which can prevent plugging effectively.Meanwhile,the high precision making blase can ensure the material fully filled with pipe casing.

Screw shaft with a certain interval are arranged with intermediate hanging bearings,which makes the front and rear blade jointed break interval smaller,and maximize the material passing flow section,thus material flow is smooth and unimpeded.

Simple structure,easy operation, low power consumption,flexible layout arrangement.

Small screw diameter with impact structure, high rotation speed which maintains large capacity.

Total enclosed structure,no pollution to environment,working environment are improved.

Selection Conditions

Material to be processed: _____
Bulk Density: _____t/m3
Material size:____mm
Handling capacity :_____t/h
Center distance from inlet to outlet:______m
Installation angle: ________°
Working power supply: _____V ______HZ

Parameters

Cement Screw Conveyor
Model	LSY100	LSY120	LSY140	LSY160	LSY200	LSY250	LSY300
Screw Dia. mm	90	115	135	163	185	237	285
Screw Rotation Speed r/min	300	300	300	308	260	200	170
Housing Dia. mm	108	133	159	194	219	273	325
Max. Capacity t/h	7	10	15	25	40	60	90
Max. Length m	8	10	12	15	18	25	25
Inclination Angle	0°~ 60°	0°~ 60°	0°~ 60°	0°~ 60°	0°~ 60°	0°~ 60°	0°~ 60°
Power L≤7m	1.1kw	2.2kw	3kw	5.5kw	7.5kw	11kw	18.5kw
Power L＞7m	2.2kw	3kw	4kw	7.5kw	11kw	15kw	22kw
